CO2 Laser Cutting Engraving Machine
One laser cutting head or Two laser cutting head(Optional)
Model: SYC-6040/9060/1080/1290(T)/1490(T)/1610(T)
Laser Power: 60W/80W/100W/130W/150W
Working area: 600*400/900*600/1000*800/1200*900/1400*900/1600*1000
Application Industries

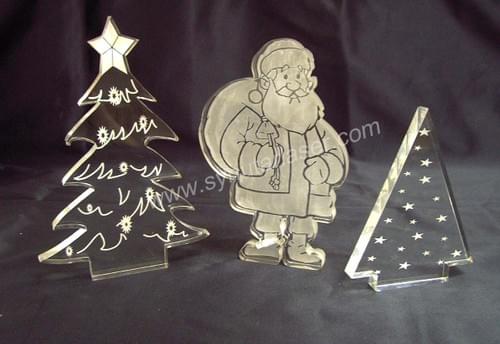

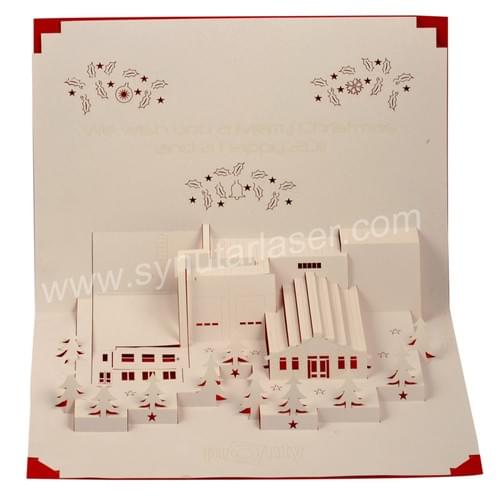

Engraving and cutting of paper, fabric, plastic, nonwoven cloth in garment and toy industries, also inclusive of precise cutting to non-metal materials, like acrylic and MDF board in handbag, glove, mold, advertisements, decoration, electrical appliance and plastic industries.
Applicable Materials
Woodwork, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, ceramic, crystal, jade, bamboo and other non-metal materials
Technical data
Machine Model | SYC-6040/9060/1080/1290(T)/1490(T)/1610(T)/--T means Two heads |
Working area(mm) | 600*400/900*600/1000*800/1200*900/1400*900/1600*1000 |
Laser Power | 60W/80W/100W/130W/150W |
Engraving speed | 0-64000mm/min |
Cutting speed | 0-36000mm/min |
Repeat Accuracy | ±0.05mm |
Moving System | CNC control system |
Overall Power Consumption | ≤1250w |
Cooling Mode | Water-cooling and protection system |
Working Voltage | 220±10% 50Hz(60Hz) |
Operating Temperature | 0~45ºC |
Operating Humidity | 5%-95% |
Graphic Supported Format | CAD, MP,JPG,PNG,TIF,PCX,TAG,IOO,GIF,PLT |
