Product Feature

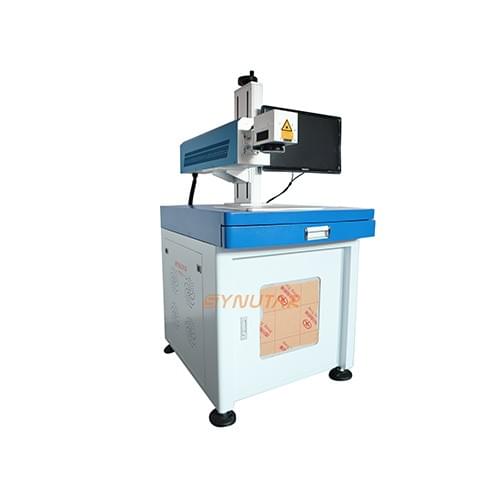

Adopting CO2 Radio Frequency metal laser generator, and high-speed scanner, this series laser machine obtains high speed and high accuracy with laser focusing solution in the rear part. By using Window interface, the software of the machine is compatible with different output formats, CorelDraw, AutoCAD, Photoshop, Illustrator, etc. The power, which controlled by software is continually adjusted. Due to no consumable material existing, the fabrication cost is lower. It has high effectiveness with large marking area and fine marking spots. Besides, the engraving depth can be controlled and adjusted for purpose, suitable for all kinds of products.

Optical Design

To ensure good laser mode, stable output, fine marking and laser spot, it adopts the new concept of optical path design.

Mechanical Design

Adopting the all-in-one structure with sealed optical path, the whole machine structure is reliable with its modern and graceful figure.

Technical data

Model: SY-C10/C30/C60/C100

Max. Average Power: 10W/30W/60W/100W

Wave Length: 10.6um

Output Stability(8h): ± 5%/ ± 10%

Marking Area: 110mmX110mm (10W)/110mmX110mm or 175mmX175mm (30W)/175mmX175mm or 300mmX300mm (60W)/175mmX175mm or 300mmX300mm (100W)

Output Power: 10% ～100% continuous adjustable

Output Frequency: 0KHZ～200Khz continuous adjustable

Marking Speed: ≤3000mm/s

Min. Character Size: 0.6mm

Min. Line Width: 0.12mm

Repetition Accuracy: ±0.01mm

Operating System: Operating System

Cooling System: Air cooling（10W/30W/60W）/Water cooling(100W)

Environment Temperature: 15℃～30℃

Humidity: 45%-75%

Power Voltage: 220V/50Hz/60Hz/10A

Applicable industries

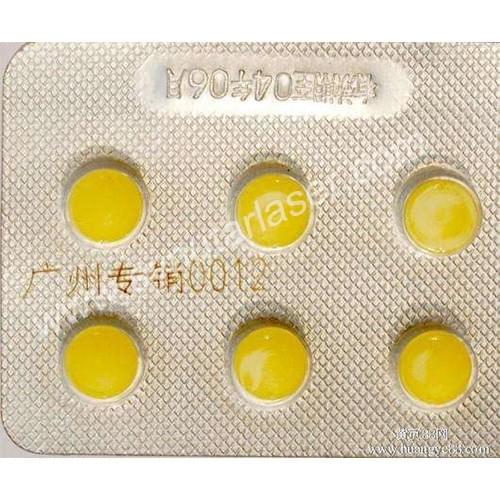

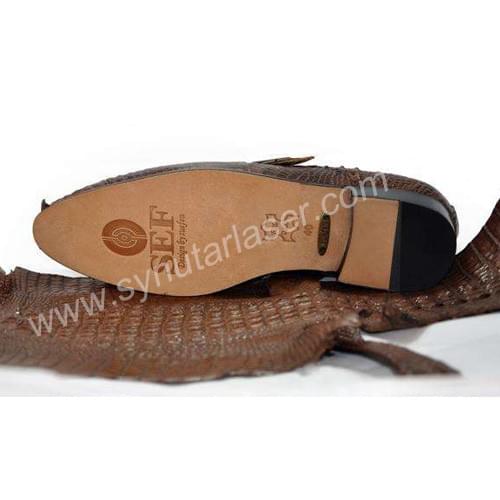

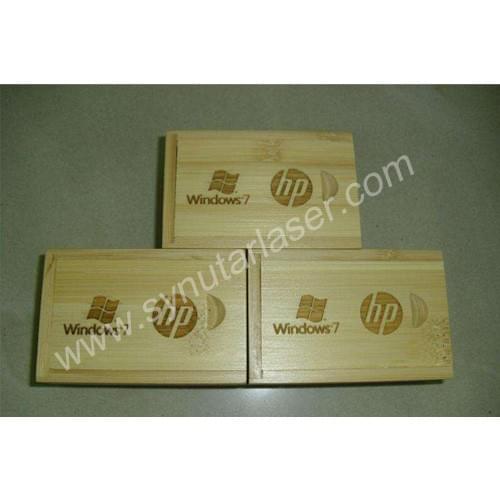

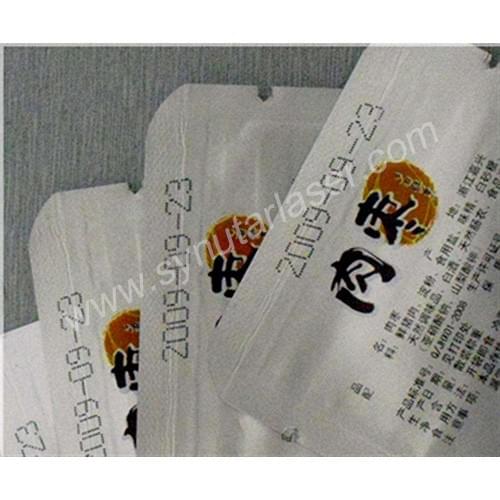

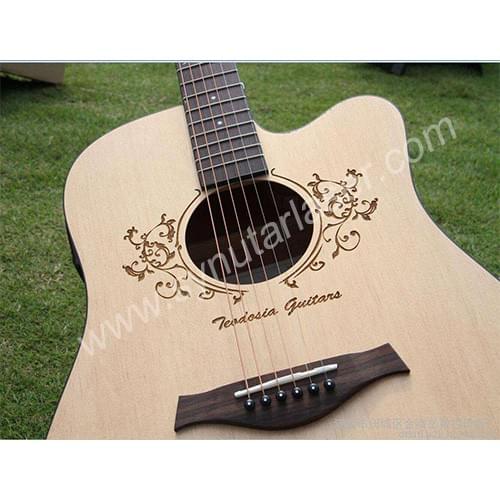

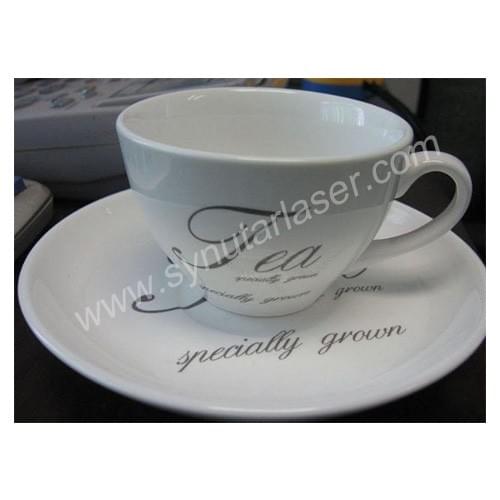

Widely apply to different kinds of consumer commodities, food beverage packaging, medicine packing, architecture ceramic, costume and accessories, leather and wool gift and crafts, nameplates, jeans, furniture, etc.

Applicable Materials

Applicable to various metal materials, industrial plastics, plating materials, rubber, ceramics and etc.
