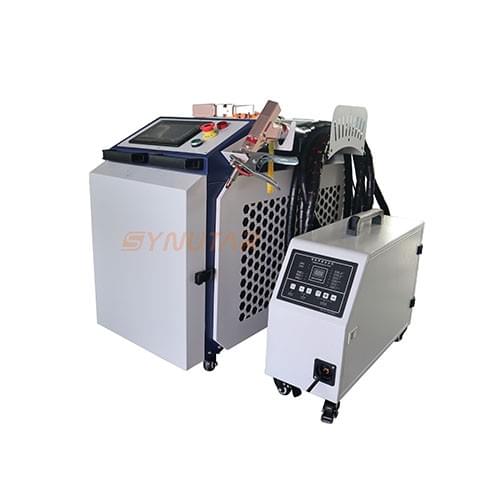

Double Heads Handheld Fiber Laser Welding and Cleaning Machine
  • Double Heads Handheld Fiber Laser Welding and Cleaning Machine
  • Double Heads Handheld Fiber Laser Welding and Cleaning Machine
  • Double Heads Handheld Fiber Laser Welding and Cleaning Machine

Double Heads Handheld Fiber Laser Welding and Cleaning Machine

Hand-held fiber laser welding machine changes the traditional laser welding mode, and uses the hand-held laser welding gun tube to replace the previous fixed optical path, it has more flexibility to access the position which are very hard to weld and welding the parts fastly at any angle.

Model: SY-HF1000/HF1500/HF2000/HF3000

Laser Power: 1000W/1500W/2000W/3000W

Send Inquiry Now
Send Inquiry Now
More Details

Features:

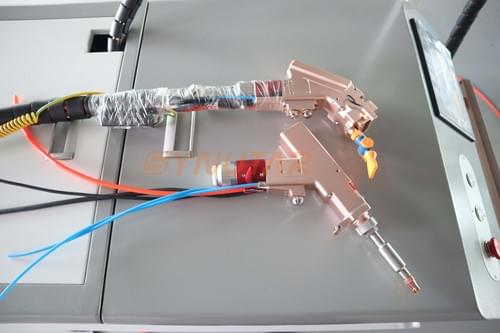

1. Equipped with professional welding head and professional cleaning head, which can be replaced at any time as needed.

2. When use welding head, the welding is firm, beautiful and smooth, and the welding speed is very fast. It can weld stainless steel, carbon steel, aluminum, aluminum alloy, galvanized sheet and other metal materials, the application industry is very wide, including cabinets, kitchens and bathrooms, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home furnishings and other industries with complex and irregular welding processes.

3. When use cleaning head, the cleaning is efficient, time-saving, precise position and size cleaning, and the cleaning industry is wide, such as metal surface rust removal, oil removal, paint removal, and plating removal.

4. The software can be switched to welding system or cleaning system at any time, and the operation is very simple.

5. The cleaning width of the professional cleaning head is adjustable from 120 to 250 mm.

6. Handheld welding head and handheld cleaning head are light and flexible, and the operation is simple.

7. Supports 8-10 meters long distance and large workpiece welding and cleaning.

8. The system is stable and the laser life is up to 100,000 hours.



Technical Parameters:

Laser Power

1500W/2000W/3000W

Laser Wavelength

1070 NM

Output power stability

±2%

Fiber Optical Cable length

Standard 8-10M

Frequency

20KHZ

Working Way

Continuous

Water Chiller

Industrial Constant Temperature Water Chiller

Working Temperature Scope

5~40 ℃

Working Environment Humidity Scope

< 70% Non-Condensation

Working Voltage

AV 220V/380V

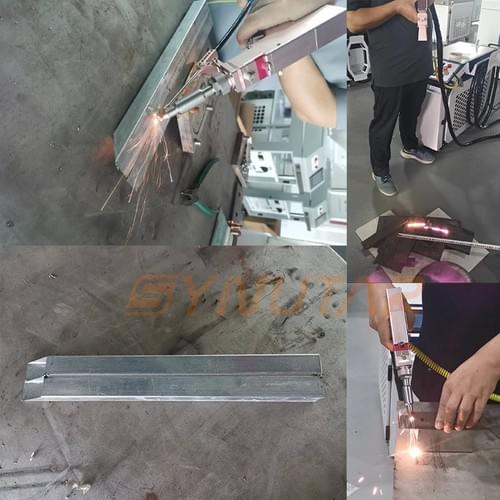

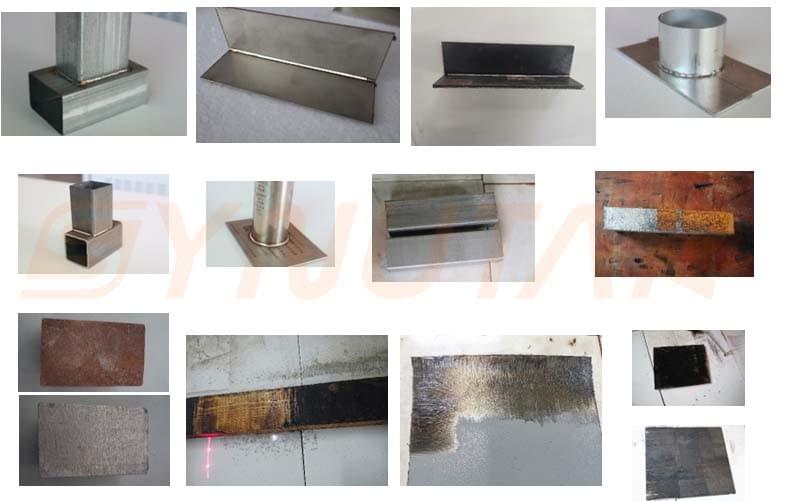

Sample photos:



Double Heads Handheld Fiber Laser Welding and Cleaning Machine
