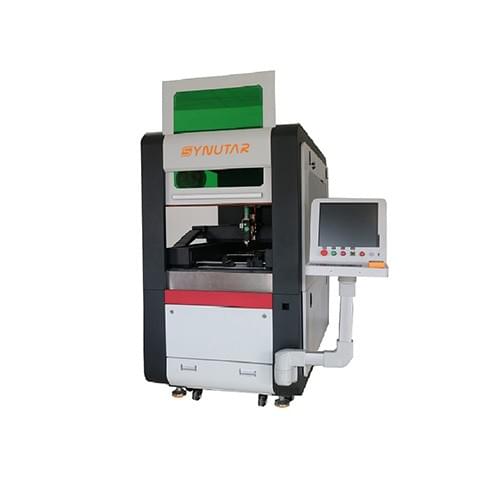

High Precision Fiber Laser Cutting Machine
Laser Power: 1000W/1500W
Principle of laser cutting: Use a high-density laser beam to pass through the laser head to focus the laser, and quickly melt the metal materials. At the same time, the molten material is blown away by the high-speed airflow coaxial with the beam to achieve the purpose of cutting.
Introduction:
The precision fiber laser cutting machine adopts a marble-based gantry structure machine tool, synchronously driven by bilateral motors, and the beam is made of high-strength cast aluminum alloy to ensure cutting accuracy. The whole set of equipment is equipped with a dedicated laser cutting control system and an auto-following focusing system, which can realize automatic follow-up during cutting. The focus of the workpiece is adjusted in real time by bending and undulating to ensure the quality and accuracy of laser cutting. At the same time, it is equipped with an efficient dust removal system to create a good working environment.
Application:
Mainly used for cutting and perforating: gold, silver, copper, brass, stainless steel, carbon steel, aluminum, galvanized plates, titanium, and other metal plates. Used in jewelry, medical equipment, precision electronics, decoration, molds, mobile phone digital, sheet metal and hardware industries.
Technical Parameters:
Laser type | Fiber continuous laser |
Laser power | 1000W/1500W |
Working area | 500x250mm/400x600mm/600x600mm |
X/Y axis repeat positioning accuracy | ≤±0.01mm |
X/Y axis maximum positioning speed | ≤44m/min |
Maximum cutting speed | ≤30m/min |
Slit width | 0.1~0.5mm |
Minimum setting unit | ≥0.1mm |
Shielding gas type | Nitrogen/oxygen/compressed air |
Cutting precision | ≤0.05mm |
Laser wavelength | 1070mm |
X/Y axis geometric positioning accuracy | ±0.02mm |
X/Y axis maximum acceleration | ≤0.6g |
Operating Voltage | 220V/50Hz |
Equipment cooling method | Water cooling |
Whole machine power consumption | 2~5KW |
Configuration list:
No. | Name | Quantity | Original | Brand |
1 | fiber laser generator | 1 set | China | Max/Raycus |
2 | Laser cutting head | 1 set | China | WSX/Raytools |
3 | Machine body and spare parts | 1set | China | Black, white and red machine cabinet + Marble platform, and equipped with fixture |
4 | AC servo motor and driver | 4 sets | Japan | Panasonic |
5 | High precision linear guide rail and ball screw | 3 sets | Taiwan | Hiwin |
6 | CNC controller and software | 1 set | China | Cypcut |
7 | Electrical components | 1 set | France | Schneider |
8 | Water Chiller | 1 set | China | S&A |
9 | Industrial computer | 1set | China | / |
10 | Dust removal fan | 1set | China | / |
11 | Other parts | 1 set | China | Receiving Cart, three-color light, explosion-proof light |
